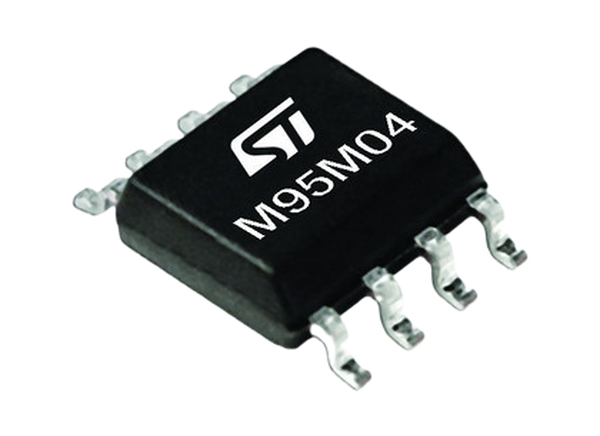

STMicroelectronics M95M04 4-Mbit serial EEPROMs
STMicroelectronics M95M04 4-Mbit serial EEPROMs are organized as 524288 x 8 bits and are accessed through the SPI bus. These EEPROMs provide a supply voltage range from 1.8V to 5.5V and guarantee over -40°C to +85°C operating temperature range. STMicroelectronics M95M04 4-Mbit serial EEPROMs offer 512-bytes of identification page and it can be used to store sensitive application parameters that can be permanently locked in read-only mode.
Features
- Compatible with SPI bus
- Memory Array
- 4MBit of EEPROM
- 512bytes of page size
- Additional identification page
- Enhanced ESD protection
- Packages
- SO8N (M95M04-DRMN6TP)
- TSSOP8 (M95M04-DRDW6TP)
Specifications
- Write Time
- Within 5ms byte write
- Within 5ms page write
- 10MHz max clock frequency
- 1.8V to 5.5V single supply voltage
- -40°C to +85°C operating temperature range
- More than 4 million write cycles
- More than 40-year data retention

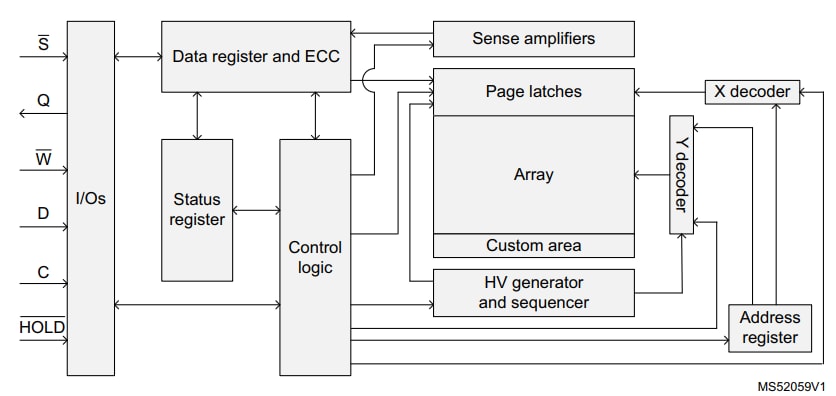

Functional Block Diagram
Complete Your Design
STMicroelectronics Standard Products
A broad range of drop-in replacements for general-purpose analog ICs, discretes, and serial EEPROMs.
Associated Board
STMicroelectronics X-NUCLEO-EEPRMA2 Memory Expansion Board
Designed for M24xx I²C and M95xx SPI EEPROM for data reading and writing.
