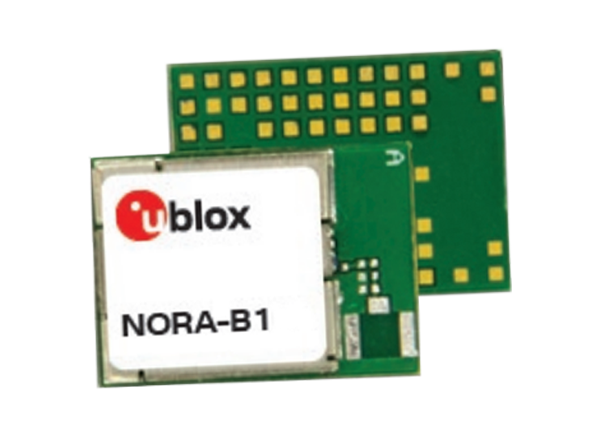

u-blox NORA-B1 BLUETOOTH® 5.2 Modules
u-blox NORA-B1 BLUETOOTH® 5.2 Modules feature an integrated nRF5340 chipset and a powerful Arm® Cortex®-M33 dual-core application and network processors. The onboard application processor provides a Floating-Point Unit (FPU), Digital Signal Processor (DSP) instruction set, and CryptoCell™-312 security architecture. The NORA-B1 Modules support multiple peripherals over high-speed SPI, QSPI, USB, ADC, and PWM interfaces. The NORA-B1 Modules feature a 2.4GHz radio capable of handling Bluetooth Low Energy (BLE), 802.15.4 for Thread, Zigbee®, and Nordic Semiconductor proprietary protocols. These Modules support multiple power supply configurations and offer multiple antenna choices, including a U.FL connector, antenna pin, and onboard PCB trace antenna options. The NORA-B1 modules provide scalable solutions for various market segments like smart cities and buildings, industrial automation, telematics, medical, and healthcare.
Features
- Based on the Nordic Semiconductor nRF5340 Bluetooth 5 System on Chip (SoC)
- Small stand-alone dual-core modules
- Include Arm Cortex-M33 application and network processors
- 802.15.4 for Thread, Zigbee, and Nordic semiconductor proprietary protocols
- Multiple antenna options
- 14.3mm x 10.4mm x 1.8mm
- Support for multiple peripherals over:
- High-speed Serial Peripheral Interface (SPI)
- Queued SPI (QSPI)
- Universal Serial Bus (USB) interface
- Analog-to-Digital (ADC) interface
- Pulse Width Modulation (PWM) interface
Applications
- Industrial automation
- Advanced wearables
- Smart buildings and cities
- Low power sensors
- Wireless-connected and configurable equipment
- Point-of-Sale (PoS)
- Medical and health devices
- Real-Time Location Systems (RTLS)
- Indoor positioning
- Asset tracking
Videos

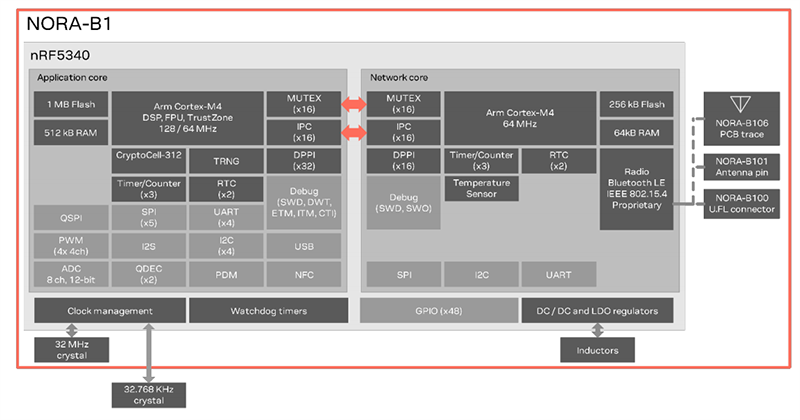

Block Diagram
Application note
