Optek / TT Electronics OPB735 Reflective Object Sensors

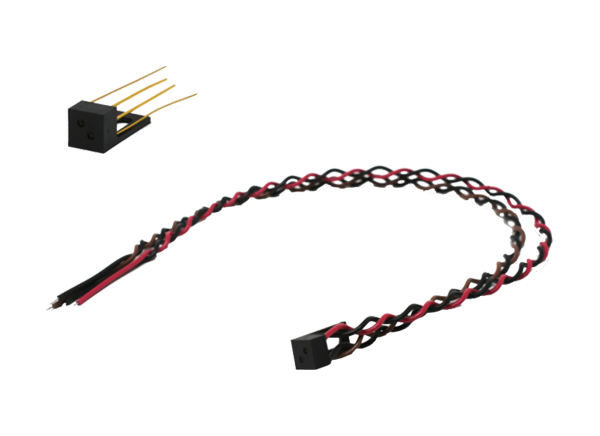

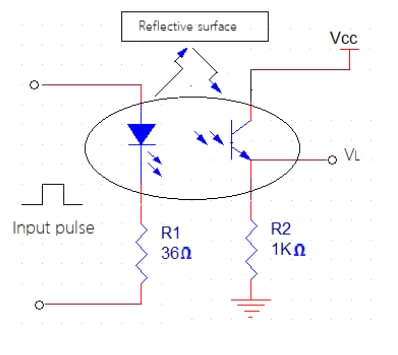

Optek / TT Electronics OPB735 Reflective Object Sensors consist of an infrared emitting diode and an NPN silicon phototransistor or photodarlington encased side-by-side on converging optical axes in a black thermoplastic housing. The detector responds to radiation from the infrared emitting diode only when a reflective object passes within its field of view. Optek / TT Electronics OPB735 Reflective Object Sensors include OPB735X sensors with four leads and OPB735XWZ sensors with 300mm interconnect wires. Applications include non-contact reflective object sensors, assembly line automation, machine automation, machine safety, and more.

Features

Choice of phototransistor or photodarlington output
Unfocused for sensing diffuse surfaces
Non-conductive plastic housing

Low profile to facilitate stacking
28AWG lead wire in 300mm (12") length

Applications

Non-contact reflective object sensor
Assembly line automation
Machine automation

Machine safety
End of travel sensor
Door sensor

Specifications

890nm LED peak wavelength
12.7mm (0.50") nominal reflection distance
-55°C to +100°C operating temperature range
Input diode
- 75mA continuous forward current
- 2V reverse voltage
- 100mW power dissipation

Output phototransistor or output photodarlington
- 15V or 30V collector-emitter voltage
- 5V emitter-collector voltage
- 30mA collector DC current
- 75mW power dissipation
