Toshiba TLP2703 Photocouplers

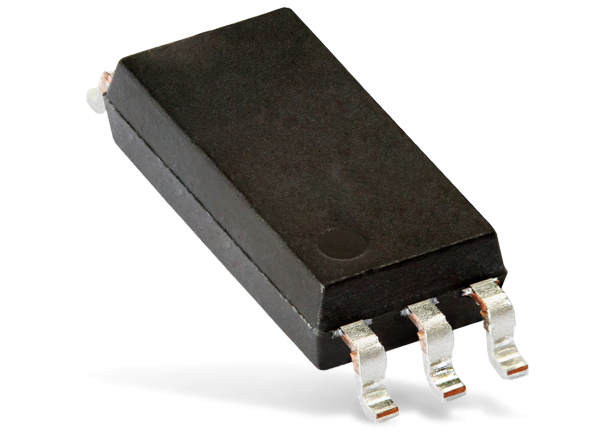

Toshiba TLP2703 Photocouplers consist of a GaAlAs infrared light-emitting diode and an integrated high-speed photodiode transistor. Housed in a 6-pin SO6L package, they are 50% smaller than photocouplers using an 8-pin DIP package. Toshiba TLP2703 Photocouplers guarantee an isolation voltage of 5kVrms and are compliant with international safety standards for reinforced insulation. These devices provide a current transfer ratio of 900% (@ IF=0.5mA) minimum over -40°C to +125°C. This makes them ideal for applications that require low input current and high-speed data transmission.

Features

  • Small 6-pin SO6L package
  • Open-collector output interface
  • -40°C to +125°C operating temperature
  • 100kbps data rate
  • -0.5 to 18V supply voltage
  • 900% current transfer ratio
  • ±15kV/µs (min) common-mode transient immunity
  • 5000Vrms (min) isolation voltage
  • 80mA (max) output current
  • 15µs (max) propagation delay time
  • Safety standards
    • UL-approved: UL1577, File No.E67349
    • cUL-approved: CSA Component Acceptance Service No.5A File No.E67349
    • VDE-approved: EN60747-5-5, EN60065, EN60950-1, EN 62368-1 (D4)

Applications

  • Communication equipment
  • Transistor inverters
  • Home electric appliances
  • Factory automation
  • PV inverters
