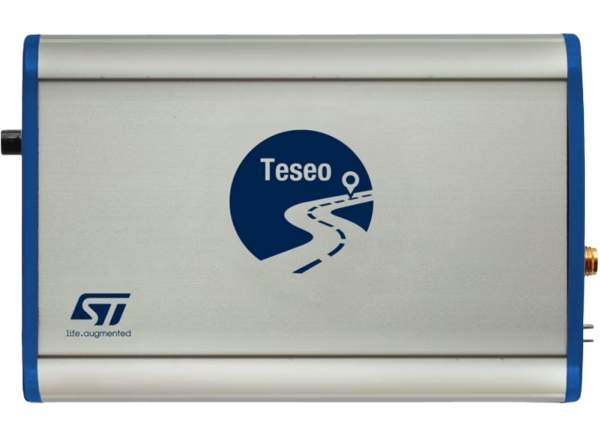

STMicroelectronics EVB-LIV4F Dual Band GNSS Module Evaluation Board
STMicroelectronics EVB-LIV4F Dual Band GNSS Module Evaluation Board is designed to evaluate Teseo-LIV4F dual-bands L1/L5 GNSS module ST solution. This board supports GPS, Galileo, Glonass, BeiDou, and QZSS multi-constellation and multiband GNSS. The Teseo-LIV4F features a high-performance ARM microprocessor with embedded flash, UART, and I2C serial communication interfaces. This eval board also features a USB power supply, battery charge, ON/OFF button, reset button, and PPS output.
Features
- ST Teseo-LIV4F dual-bands L1/L5 GNSS platform
- Multi-constellation and multi-bands GNSS:
- GPS
- Galileo Glonass
- BeiDou
- QZSS
- USB power supply and battery charge
- ON/OFF and reset buttons are available
- NMEA over:
- UART by USB
- Signals by connector
- PPS output
- PPS and power LEDs

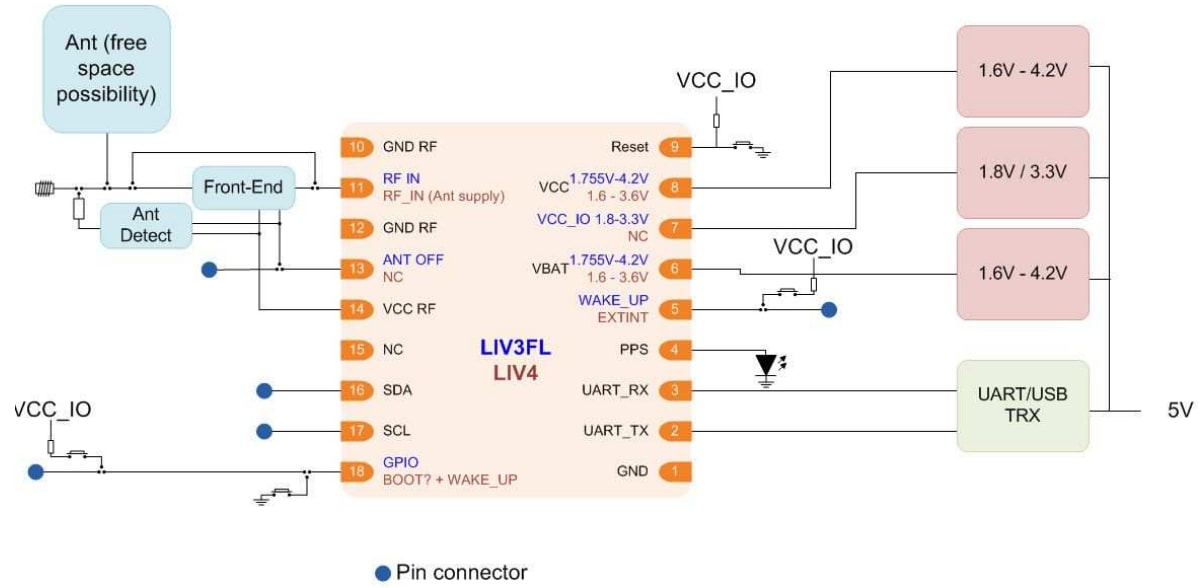

Block Diagram
