SEGGER Microcontroller J-Link BASE & J-Link BASE Compact Debug Probes

SEGGER Microcontroller J-Link BASE and J-Link BASE Compact Debug Probes are USB-powered JTAG devices that support many CPU cores. These Segger debug probes are based on a 32-bit RISC CPU and can communicate with the supported target CPUs at high speed. The J-Link BASE debug probes are available in J-Link BASE (100mm x 53mm x 27mm) and J-Link BASE Compact (47mm x 40mm x 14mm) form factors. These debug probes are supported by all major IDEs, including Eclipse, GDB-based IDEs, and SEGGER Embedded Studio.

Features

Supports a broad range of microcontrollers
Multiple CPUs supported (8051, PIC32, RX, Arm® 7/9/11, Cortex-M/R/A, and RISC-V)
Up to 1MBps download speed

Supports unlimited breakpoints in Flash memory
Built-in VCOM functionality

Specifications

Supported OS
- Microsoft Windows 2000, XP, 2003, Vista, 7, and newer
- Linux
- macOS 10.5 and higher
EN 55022 and EN 55024 electromagnetic compatibility
5°C to 60°C operating temperature range
90%rH maximum relative humidity (non-condensing)

Dimensions

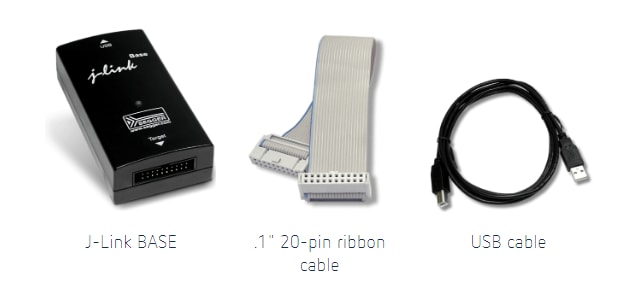

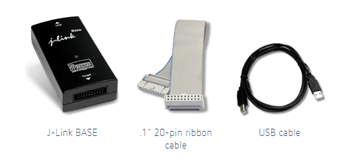

- 100mm x 53mm x 27mm for J-Link BASE

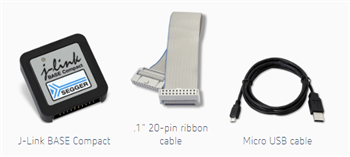

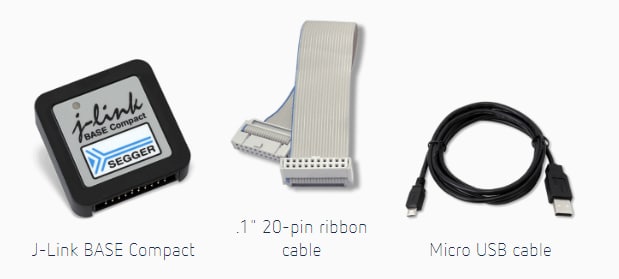

- 47mm x 40mm x 14mm for J-Link BASE Compact
50mA+ maximum target supply current
1.2V to 5V target interface voltage (V_IF)
15MHz maximum target interface speed
