Seeed Studio Wio-WM1110 Development Kit

Seeed Studio Wio-WM1110 Development Kit is an all-in-one solution for developing low-power, long-range IoT positioning applications. Based on the Wio-WM1110 Wireless Module, the kit integrates a Semtech LoRa® transceiver for long-range wireless communication and low-power, high-sensitivity network coverage. GNSS and Wi-Fi® scanning offer all-around location coverage. BLUETOOTH® Low Energy, BLUETOOTH mesh, NFC, Thread, and Zigbee® are also supported.

Features

Low-power high-sensitivity LoRa/(G)FSK half-duplex RF transceiver with support in the 863MHz to 928MHz range
Multi-purpose radio front-end for geolocation with GNSS (GPS/ BeiDou), Wi-Fi, and BLUETOOTH
Rich GPIOs and compatible with over 400x Grove components for flexible expansion options

Open source platform leverages the extensive LR1110 and nRF52840 open-source ecosystem for infinite application possibilities
Built-in sensors and multiple power supply modes - temperature/humidity sensor and 3-axis accelerometer, supports both solar and battery power

Applications

Smart agriculture
Wireless meter reading
Smart cities

Asset tracking
Inventory management
Asset loss/theft prevention

Specifications

LoRa and positioning (Semtech LR1110)
- 863MHz to 928MHz frequency range
- -141dBm to -125dBm sensitivity range
- 20dBm maximum output power
- 2km to 10km range (depending on antenna and environment)
BLUETOOTH (Nordic nRF52840)
- 1MB flash
- 256KB RAM
- 6dBm maximum output power
Built-in sensors
- Temperature/Humidity sensor (SHT41)
  - -40°C to +125°C temperature range, 0.2°C accuracy
  - 0% to 100% Relative Humidity (RH) range, 1.8%RH accuracy
- 3-axis accelerometer (LIS3DHTR)
  - ±2g, 4g, 8g, and 16g range
  - 0.5Hz to 625Hz bandwidth
  - 1000LSB to 83LSB sensitivity range (±2g to ±16g)

Voltage supplies
- 3.3V for USB 2.0 Type-C
- 0.5W/100mA for solar panel (optional), power supply will charge the ultracapacitor
- 3x AAA batteries (optional), 4.5V with each battery at 1.5V

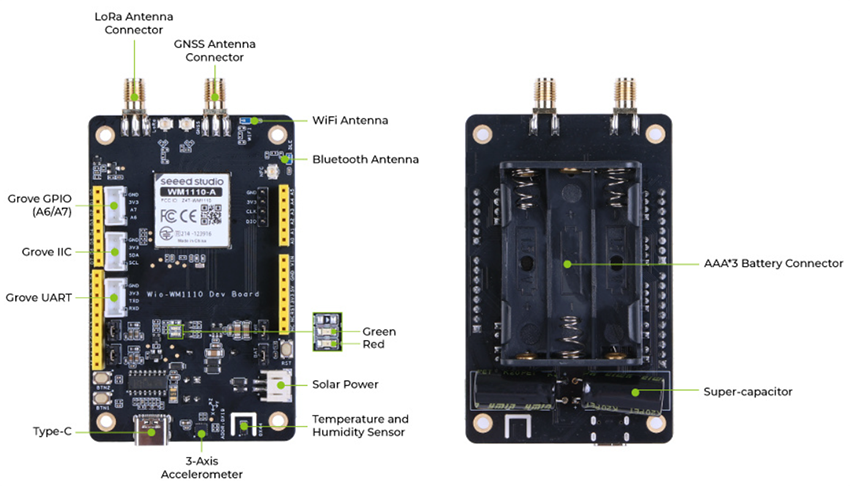

Interface
- RFIO
  - 1x BLUETOOTH antenna
  - 1x Wi-Fi antenna
  - 1x GNSS antenna connector
  - 1x LoRa antenna connector
  - 1x NFC antenna IPEX
- 1x USB Type-C™
- Grove interface
  - 1x GPIO (A6/A7)
  - 1x I²C
  - 1x UART
- Arduino-compatible GPIO connectors
