Diodes Incorporated AP64202Q Synchronous Buck Converter

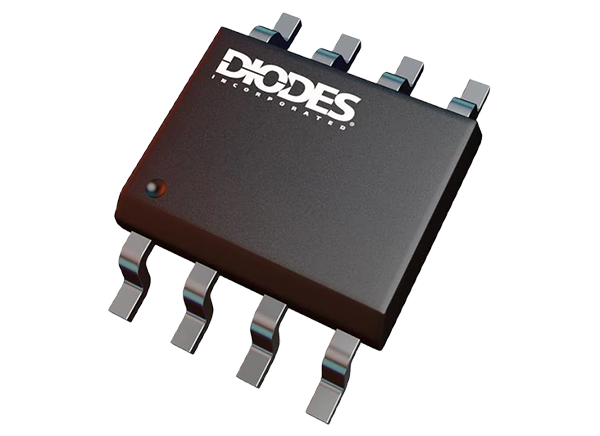

Diodes Incorporated AP64202Q Synchronous Buck Converter is a 2A converter with a wide input voltage range of 3.8V to 40V. The device fully integrates a 150mΩ high-side power MOSFET and an 80mΩ low-side power MOSFET. The device provides high-efficiency step-down DC-DC conversion. The AP64202Q device is easily used by minimizing the external component count due to its adoption of peak current mode control along with its integrated loop compensation network.


  • AEC-Q100 qualified for automotive applications
  • Device temperature grade 1 -40°C to +125°C TA range
  • VIN 3.8V to 40V
  • Output Voltage (VOUT) 0.8V to VIN
  • 2A continuous output current
  • 0.8V ±1% reference voltage
  • 25µA low quiescent current (pulse frequency modulation)
  • Adjustable switching frequency 100kHz to 2.2MHz
  • External clock synchronization 100kHz to 2.2MHz
  • Adjustable soft-start time
  • Up to 88% efficiency at 5mA light load
  • Proprietary gate driver design for EMI reduction
  • Frequency spread spectrum (FSS) to reduce EMI
  • Low-Dropout (LDO) mode
  • Precision enable threshold to adjust UVLO
  • Protection circuitry
    • Undervoltage Lockout (UVLO)
    • Output Overvoltage Protection (OVP)
    • Cycle-by-cycle peak current limit
    • Thermal shutdown


  • Automotive power systems
  • Automotive infotainment
  • Automotive instrument clusters
  • Automotive telematics
  • Automotive lighting control
  • Advanced driver assistance systems
