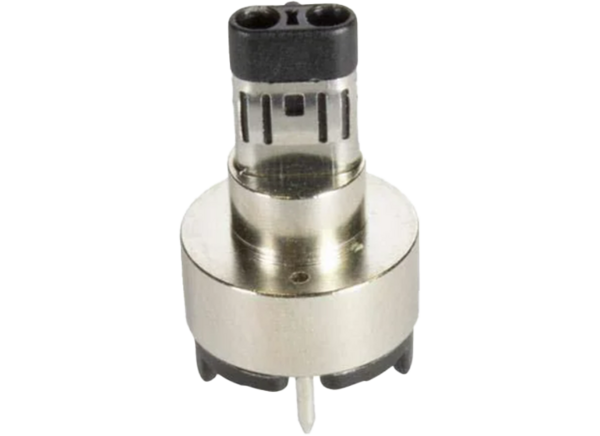

HARTING M8 T1 Industrial Device-Side Connectors
HARTING M8 T1 Industrial Device-Side Connectors offer an IP67 protection rating, up to 10Gb data rate, and a 60VDC voltage rating. These connectors are the chosen mating face for SPE for industrial applications that meet the international standardization committees ISO/IEC, TIA, and IEEE. The M8 T1 connectors feature an IP-based communication up to the field level, saving space and reducing weight. HARTING M8 T1 Industrial Device-Side Connectors are ideal for SOS terminals, IP cameras, actuators, field devices, driver-assistance terminals, and surveillance.
Features
- IP-based communication
- One pair of wires
- Vibration-free connections
- Space-saving design
- Short installation time for field devices
- Weight reduction
- Device-side hardware backwards compatibility
Applications
- SOS terminals
- Driver-assistance terminals
- IP cameras
- Field devices and sensors
- Actuators
- Surveillance and control
Specifications
- IP67 protection rating
- Up to 10Gb data rate
- 60VDC voltage rating
- 4A rated current per contact
- 2 contacts
- ≥100 mating cycles
- 360° shielded contact
- THR reflow soldering termination
