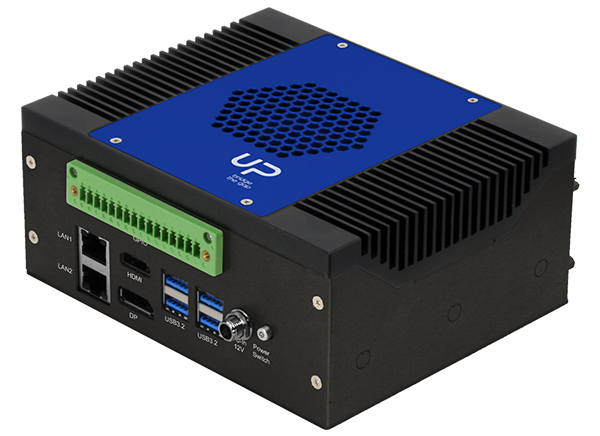

AAEON UP Xtreme i11 Edge Compute Enabling Systems
AAEON UP Xtreme i11 Edge Compute Enabling Systems offer the next generation in edge computing with 5G, powered by the lntel® 11th Gen Core™ processors with Iris® Xe graphics. The Systems provide an M.2 3052 slot to support 5G modules enabling ultra-low latency and reliable data transmission to/from masses of IoT devices. The Iris Xe graphics deliver up to 96EUs, while the Intel Ethernet runs 2.6Gb/s.
The AAEON UP Xtreme i11 Edge Compute Enabling Systems feature seamless connectivity, exceptional graphics, and I/O options that boost speed, reliability, and efficiency. The UP Xtreme i11 Edge ensures the convergence of 5G, AI, Cloud Computing, Data Analytics, and IIOT.
Features
- UP Xtreme i11 Edge with an Intel® 11th Gen Core SoC, up to 4.4GHz
- Intel Core i7-1185GRE
- Intel Core i5-1145GRE
- Intel Core i3-1115GRE
- Intel Celeron® 6305E
- Intel® UHD Graphics (Celeron/ Core™ i3) / Intel® Iris Xe (Core™ i5 & i7)
Applications
- Robotics
- Vision
- Industrial automation
- Retail
- Healthcare
Specifications
- 15W to 28W Depends on CPU processor TDP
- VPU via UP AI Core XM2280
- Intel® Iris® Xe Graphics
- Intel® FPGA Altera MAX 5
- 2x 8GB 3200Mhz SO-DIMM Modules system memory
- Storage capacity of 1x 128GB 2.5” SSD
- 1 x 1GbLAN (i219), 1x 2.5Gb LAN (i225) Ethernet
Associated Products
AAEON UP Computer-On-Modules Xtreme i11 Boards
Designed to bring greater performance and capability to AI and Edge Computing.
Additional Resources
System Overview
Board Overview
Block Diagram
